What Are RABS?

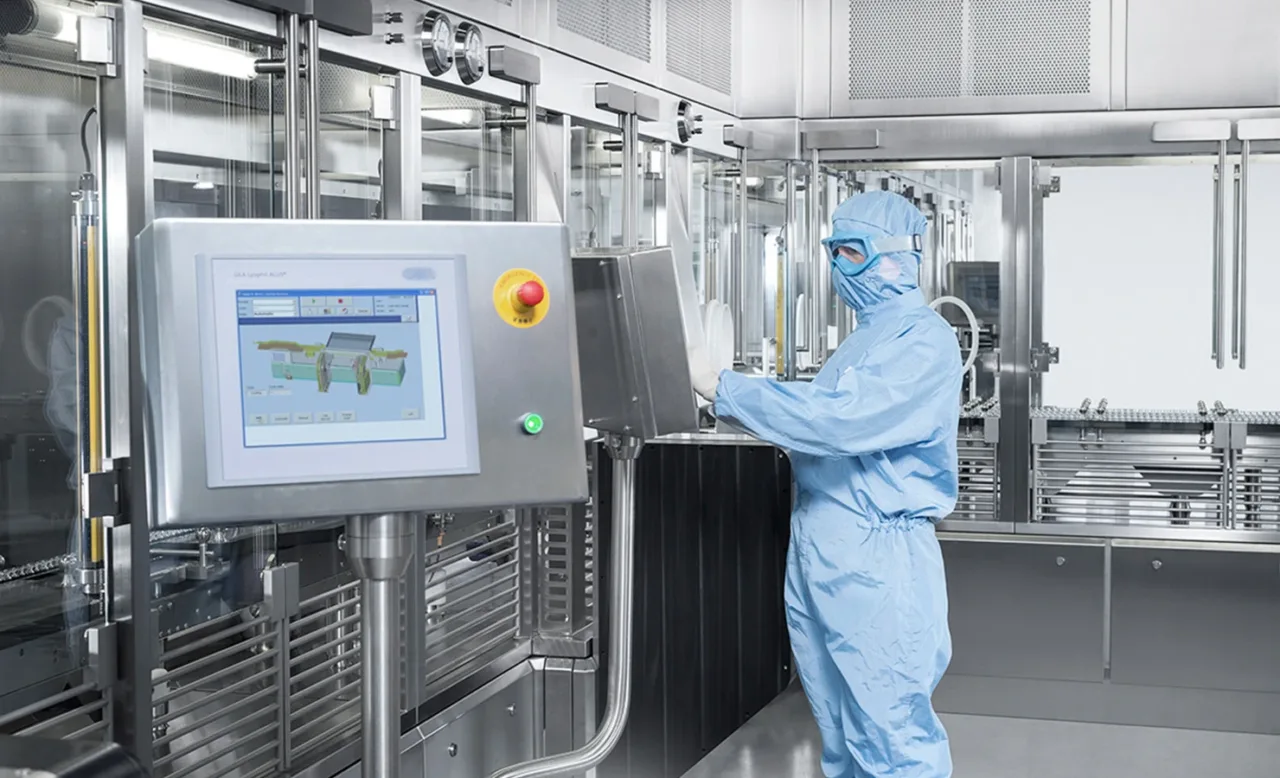

Restricted Access Barrier Systems (RABS) are advanced containment systems used in pharmaceutical and biotechnology manufacturing environments. They are designed to provide a physical and aerodynamic barrier between the operator and the critical cleanroom environment, particularly aseptic processing zones. RABS limit contamination risks by reducing direct human intervention and maintaining environmental control.

Why Are RABS Being Used?

Restricted Access Barrier Systems (RABS) are being increasingly implemented in pharmaceutical manufacturing environments due to their ability to bridge the gap between traditional cleanroom operations and complete isolator systems. Key reasons for their adoption include:

• Enhanced Contamination Control
  RABS provides a robust physical and aerodynamic barrier between operators and critical zones, significantly reducing microbial and particulate contamination risk during aseptic processing.
• Regulatory Compliance
  RABS help manufacturers meet the stringent requirements of international regulatory bodies such as the FDA and EMA and align with cGMP and EU Annex 1 standards, particularly for sterile product manufacturing.
• Improved Operator Safety
  By minimizing direct contact with open product zones and hazardous substances, RABS enhance occupational safety, especially when handling potent or toxic compounds.
• Cost-Effective and Flexible
  Compared to isolators, RABS are generally more cost-effective and less complex to retrofit into existing facilities. They offer flexibility for various production scales and are quicker to implement without major structural modifications.

Advanced Therapy Medicinal Products I ATMPs I



Types of RABS

1.     Open RABS (oRABS):

Open Restricted Access Barrier Systems (oRABS) are designed to provide a physical barrier between the operator and the critical aseptic zone while maintaining open airflow with the surrounding cleanroom. Key characteristics include:

• Shared Air Environment
  The system draws air from the surrounding cleanroom (typically Grade B), which is filtered through terminal HEPA filters within the RABS unit.
• Non-Sealed Design
  While physical barriers such as rigid panels, glove ports, and doors are in place, the system is not airtight. This allows for easier access but requires strict environmental controls.
• Environmental Requirement
  Due to the system’s open nature, oRABS must be operated within a Grade B cleanroom to maintain the required aseptic conditions in the critical zone (Grade A under RABS).
• Operator Interventions
  Designed to limit—rather than eliminate—operator interventions, oRABS rely on stringent aseptic techniques and validated procedures.

2.     Closed RABS (cRABS):

Closed Restricted Access Barrier Systems (cRABS) are fully enclosed systems designed to maximize contamination control and minimize operator exposure to critical environments. These systems are more advanced than open RABS and offer enhanced sterility assurance.

• Fully Enclosed Configuration
  The cRABS maintains a sealed barrier around the aseptic zone, with all operations conducted through glove ports or automation. This enclosure significantly reduces the risk of contamination from human interaction.
• Integrated HEPA Filtration
  Air supplied to the internal environment is filtered through high-efficiency particulate air (HEPA) filters. The filtered air is recirculated within the enclosure or exhausted depending on the application.
• Positive Pressure Maintenance
  The internal chamber operates under positive pressure relative to the surrounding environment to prevent ingress of contaminated air in case of minor leaks.
• Higher Sterility Assurance Level (SAL)
  Combining physical containment with strict airflow control, cRABS offer a higher product protection level than open systems and are suitable for critical aseptic manufacturing processes.

3.     Hybrid RABS:

Hybrid RABS combine key features of both isolators and traditional RABS, offering enhanced contamination control with greater operational flexibility. These systems are often selected when a higher level of sterility assurance is required but full isolator implementation is not feasible.

• Integrated Design Approach
  Hybrid RABS incorporate structural and operational elements from isolators (e.g., partial enclosure, limited access) while maintaining the ergonomic and cost advantages of RABS.
• Decontamination Capability
  Some hybrid RABS are designed to support automated decontamination processes, such as hydrogen peroxide (H₂O₂) vapor bio decontamination, to reduce bioburden before aseptic processing begins.
• Partial Sealing
  While they offer improved containment over open RABS, hybrid systems are not fully sealed like isolators. Controlled access and validated airflows remain critical.
• Use Cases
  Ideal for operations requiring improved environmental control over open RABS but without the full infrastructure investment needed for isolators

Biosafety Cabinets

Qualification of RABS

Qualification Strategy includes DQ, IQ, OQ, and PQ phases, ensuring that the RABS is designed, installed, and functions as intended.

1.     Design Qualification (DQ)

• Verifies that the design meets user requirements and regulatory expectations.
• Design review, risk assessments, and documentation of specifications.

2.     Installation Qualification (IQ)

• Confirms that the RABS system and components are installed correctly.
• Checks utility connections, component specs, drawings, software versions, etc.

3.     Operational Qualification (OQ)

• Verifies that the RABS operates within predetermined parameters.
• Tests include:
  • HEPA filter integrity testing (e.g., DOP/PAO testing)
  • Airflow visualization (smoke studies)
  • Alarm verification
  • Gasket and door seal integrity
  • Pressure decay tests

4.     Performance Qualification (PQ)

• Demonstrates that the RABS performs effectively in routine operation.
• Tests include:
  • Environmental monitoring (viable and non-viable particles)
  • Aseptic process simulation (media fill)
  • Operator interventions testing

Overall Qualification Strategy

All qualification phases must be documented and traceable, complying with GxP and Annex 1 requirements.

Pros and Cons of Using RABS

Pros

• High sterility assurance level
• Cost-effective vs isolators
• Lower human intervention
• Easily retrofitted in existing cleanrooms
• Flexible operations

Cons

• Requires controlled cleanroom environment (Grade B or higher)
• Human intervention still possible (vs isolators)
• Glove port risks (integrity, ergonomic strain)
• More maintenance than isolators (especially for open RABS)
